High-Corrosion-Resistant Composite Film Steel Plate
The High-Corrosion-Resistant Composite Film Steel Plate (commonly referred to as “film-laminated steel” or “composite-film color steel”) is a dual-layer protective sheet material produced by thermally bonding a high-density polymeric anti-corrosion film onto a galvanized or aluminum-zinc coated steel substrate at high temperatures. Distinguished by its exceptional corrosion resistance, weatherability, and maintenance-free nature, it serves as a leading alternative solution for applications within severely corrosive environments. I. Basic Structure and Materials
Substrate: High-zinc-coating galvanized steel sheet or Aluminum-Zinc alloy sheet (AZ150), providing structural strength and fundamental rust protection.
Composite Film Layer (Core Anti-Corrosion Layer):
PVDF Fluorocarbon Film: Premium grade; resistant to acids, alkalis, salt spray, and UV radiation; service life of 25+ years.
PET Film: High cost-effectiveness; excellent weather resistance, thermal insulation, and anti-aging properties.
PVC/ASA/TPO Film: Resistant to chemicals and impact; suitable for industrial and agricultural (livestock farming) environments.
Process: High-temperature hot-press lamination; the film forms a chemical bond with the steel sheet, resulting in a solvent-free, bubble-free finish with extremely strong adhesion.
II. Core Performance (Far Superior to Ordinary Color-Coated Steel)
Superior Anti-Corrosion Properties
The dense film layer effectively isolates the substrate from moisture, acids, alkalis, salt spray, and chemical fumes.
Salt Spray Resistance: 6000+ hours with no red rust formation (compared to only 500 hours for ordinary color-coated steel).
Acid/Alkali Resistance: No visible changes after immersion in 5% HCl or NaOH solutions for 24 hours.
The preferred choice for highly corrosive environments such as coastal regions, chemical plants, smelting facilities, and livestock farms.
Ultra-Long Service Life
Designed Service Life: 20–30 years (compared to 5–10 years for ordinary color-coated steel).
Extended maintenance-free intervals, resulting in lower total lifecycle costs.
Weather Resistance and Thermal Insulation
Resistant to UV radiation; does not chalk or fade.
High surface reflectivity reduces roof temperatures by 8–15°C in summer, resulting in significant energy savings.
Processing and Installation

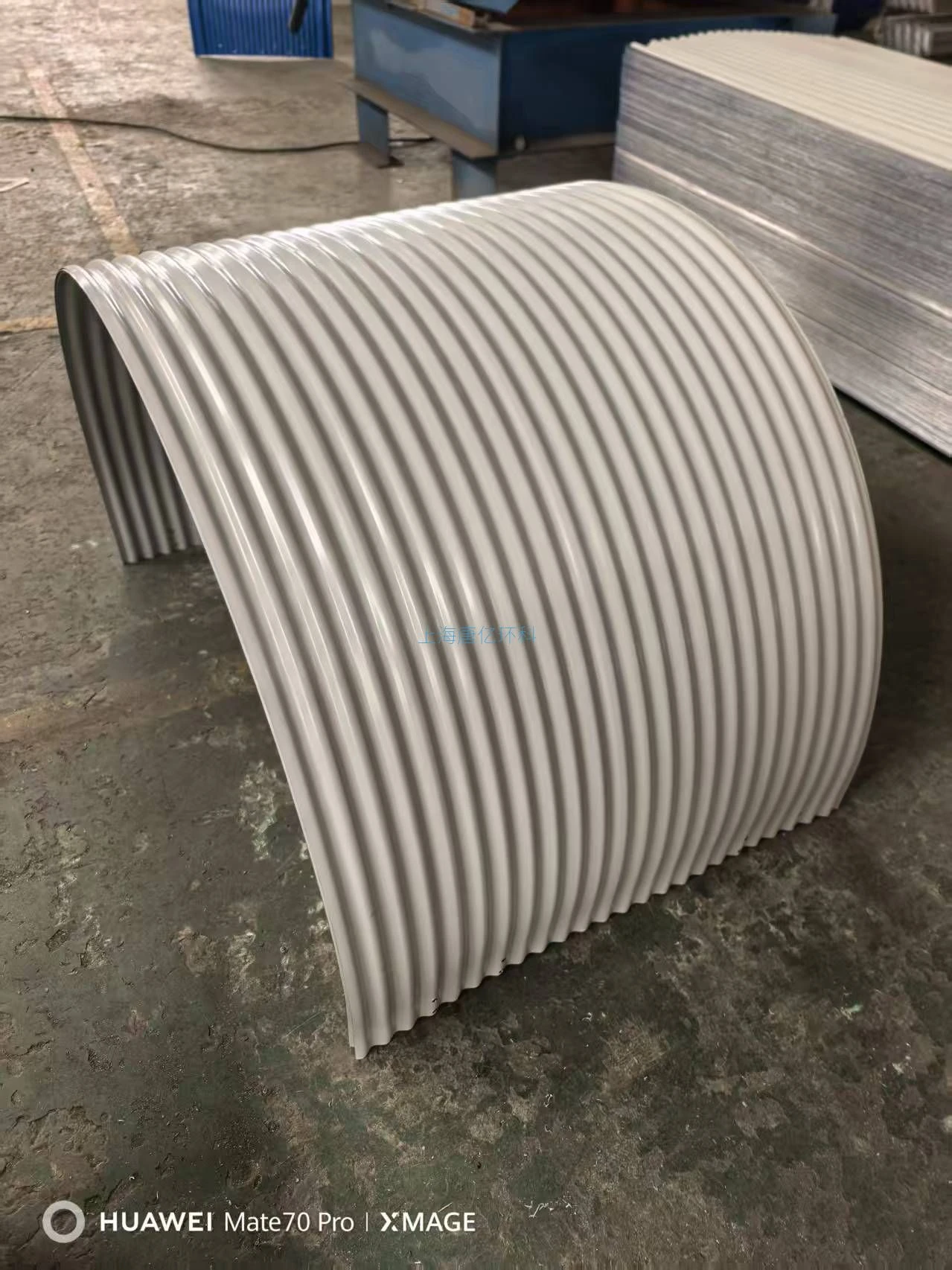

Capable of roll-forming, bending, and curved processing; allows for 0T bending without cracking or peeling of the coating.
Waterproof interlocking/overlapping seams; installation procedures are identical to those for standard color-coated steel, requiring no special techniques.
Environmental Friendliness and Safety
VOC-free; Class B1 fire rating; fully recyclable.
III. Common Specifications
Substrate Thickness: 0.4–1.2 mm (0.6–0.8 mm is most commonly used).
Effective Width: 840 / 900 / 1050 mm (after roll-forming).
Length: Customizable (maximum length subject to specific requirements). 12m
Surface Finishes: Matte, Orange Peel, Embossed, Custom Colors
IV. Applicable Scenarios (Prioritized for High-Corrosion Environments)
Industrial: Chemical plants, smelters, coking plants, power stations, pickling workshops, wastewater treatment plants
Coastal: Ports, wharves, coastal industrial facilities, island structures
Agriculture/Aquaculture: Livestock farming, aquaculture facilities, fermentation workshops (resistant to ammonia gas and manure corrosion)
Architecture: High-speed rail stations, airports, roofing/wall cladding for large-scale venues
Other: Waste incineration plants, electroplating workshops, high-humidity and high-salinity environments
V. Comparison with Standard Color-Coated Steel and Aluminum-Magnesium-Manganese Alloys
Comparison Table
Feature | High-Corrosion-Resistant Composite Film Steel | Standard Color-Coated Steel | Aluminum-Magnesium-Manganese Alloy
Corrosion Resistance | ★★★★★ (Superior) | ★★ (Average) | ★★★★ (Excellent)
Service Life | 20–30 Years | 5–10 Years | 30–50 Years
Price | Mid-to-High | Low | Mid-to-High
Weight | Relatively Heavy | Relatively Heavy | Light (1/3 the weight of steel)
Processability | Good | Good | Excellent (for complex shapes)
Thermal Insulation | Excellent | Average | Average
Maintenance | Minimal | Frequent | Minimal
